KiCad Blue Prints
Layer Settings in Footprint Editor
Current User Interface:
The Problem is here, that if you change the copper layer, the according technical layers do not change.
This could lead for example to SMT pads on the bottom side, which are coverd with solder mask. That shoud be avoided in it's root.
The options:

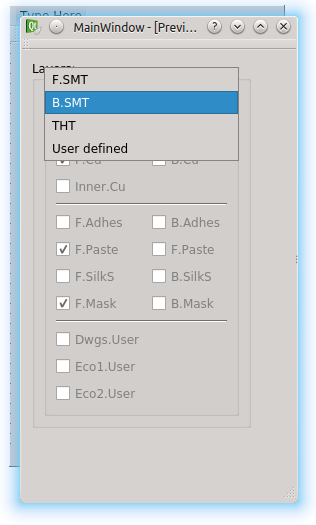

We have 4 options for predefined layer sets.

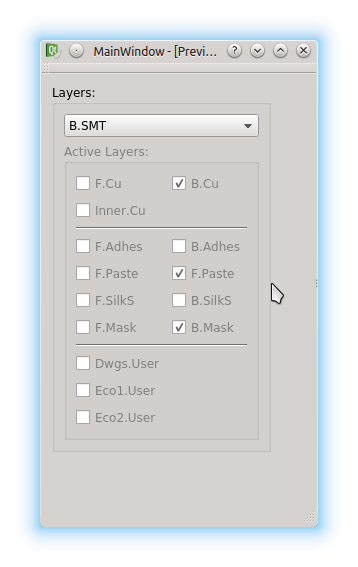

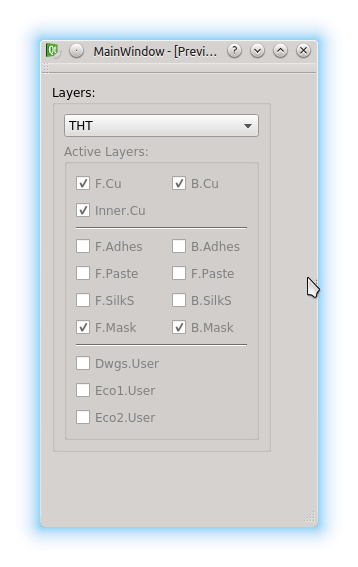

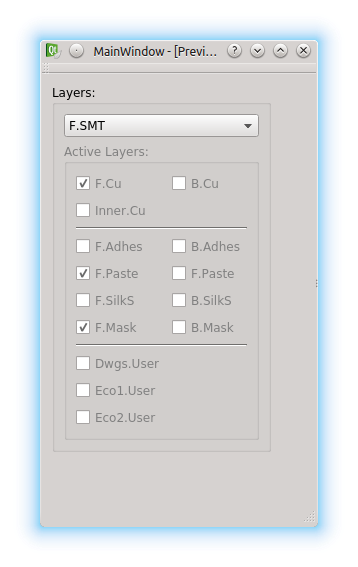

Fixed Layers for common templates:
In the first 3 sets, the layers can not be changed by the user, this is, that he get not confuesd by automatic cahanging checkboxes, which, her perhaps has changed manually before.
And user defined layers:
For flexibility we provide a user defined set of layers, where the checkboxes are enabled and editable by the user:
