Here I will describe a simple solution to control two units of programmable power supplies via Ethernet.

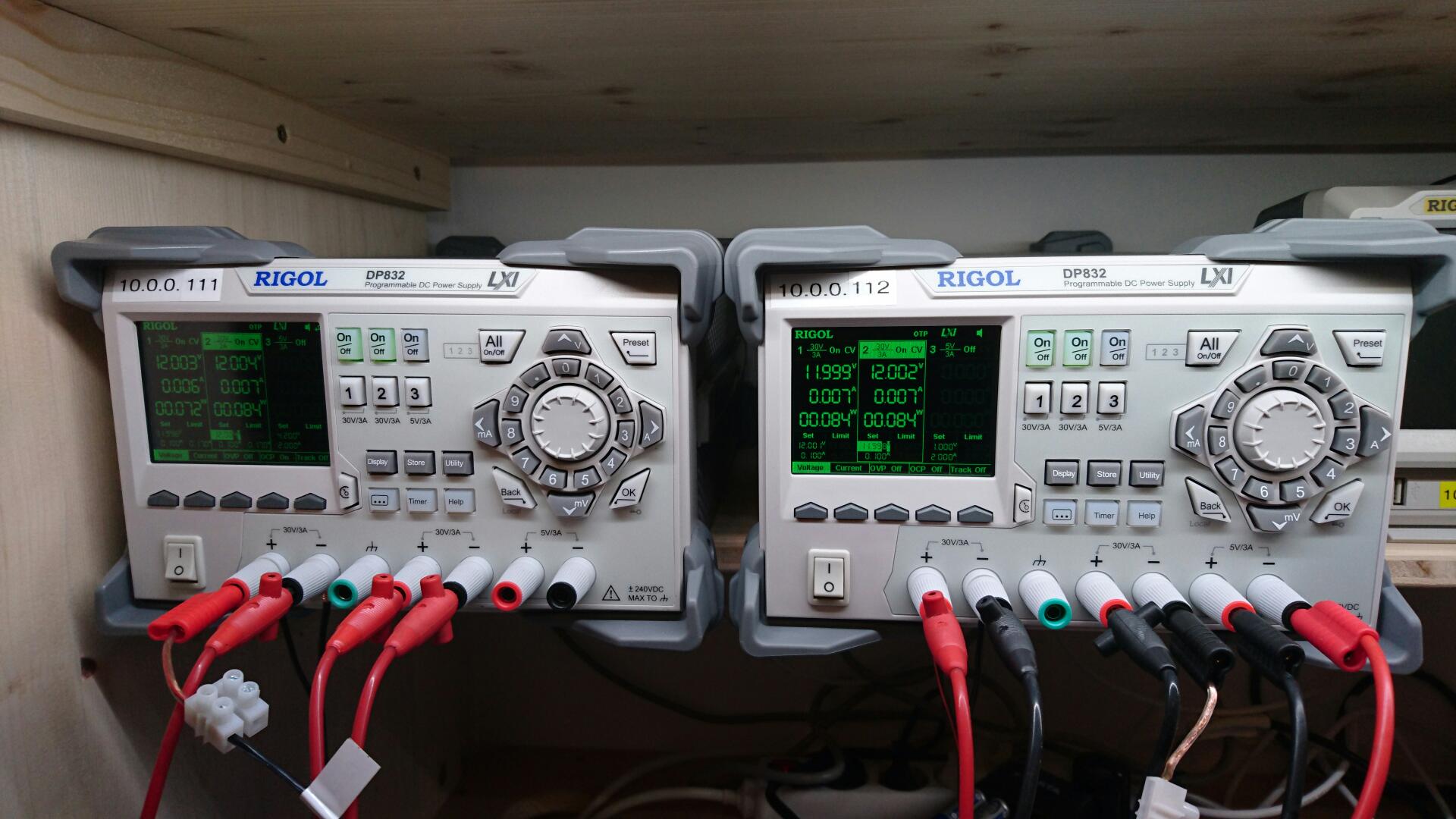

• 2 Units, Rigol DP832 with Ethernet (LXI) Extension installed
• Notebook running Linux Mint 17.3

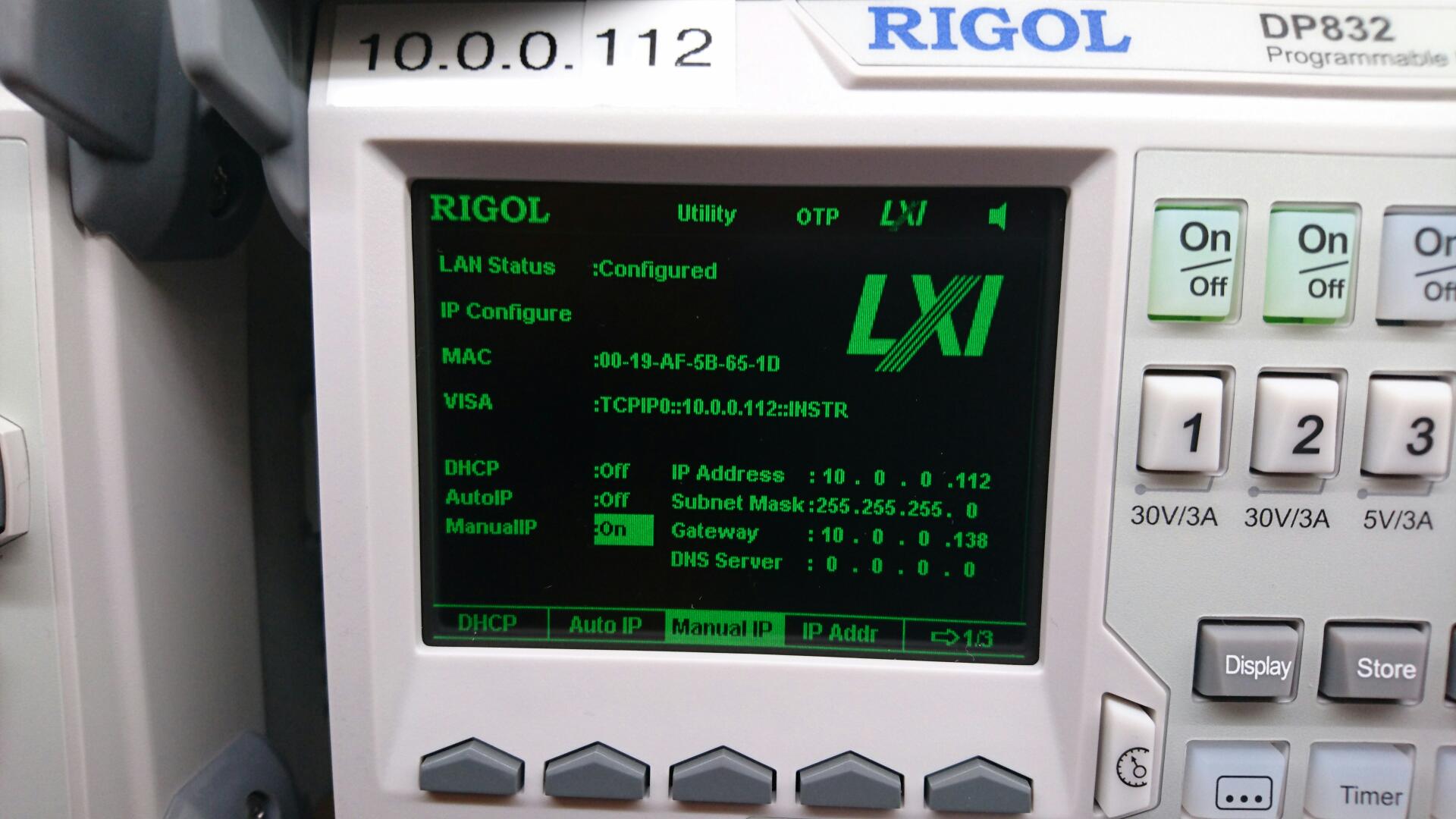

First the Ethernet interface on the RIGOLs has to be configured. We have to use fixed IP-addresses so our scripts then will work every time we want to use them.

The goal is to have shell scripts, which can be run with a double-click.

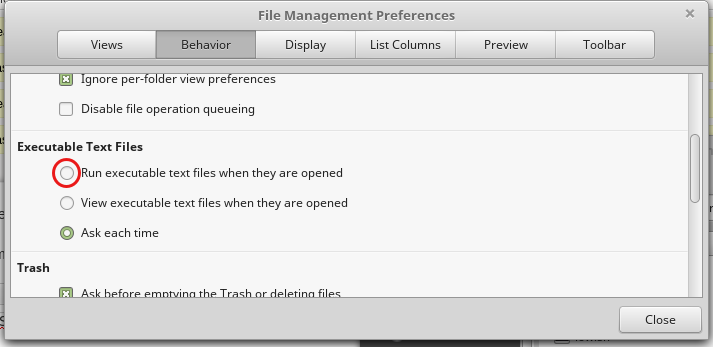

For this Nemo's config has to be changed, so we don't get annoying dialogs:

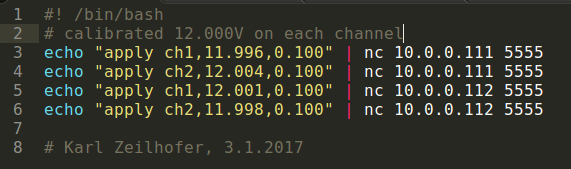

For the shell scripts we use netcat (short nc), which makes a raw TCP connection to the SCPI-Server (the RIGOL instrument). Netcat gets the SCPI command via echo and a pipe.

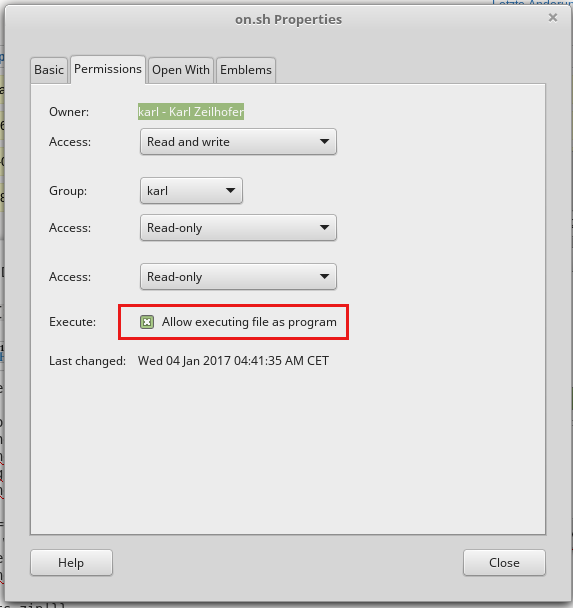

To make a script runnabla/clickable, we have to give it the permission via right-click, Properties:

rigol-dp832-scripts.zip (don't forget to make them executeable)
