KiCad Blue Prints

Layer Settings in Footprint Editor

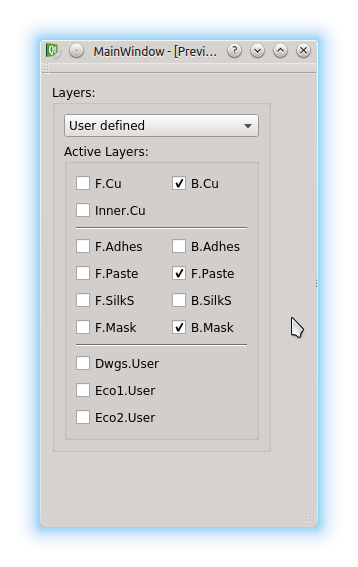

Current User Interface:

The Problem is here, that if you change the copper layer, the according technical layers do not change. This could lead for example to SMT pads on the bottom side, which are coverd with solder mask. That shoud be avoided in it's root.

The options:

We have 4 options for predefined layer sets.
